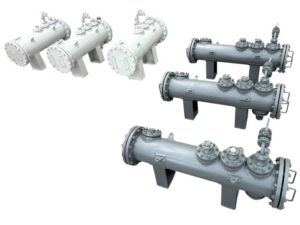

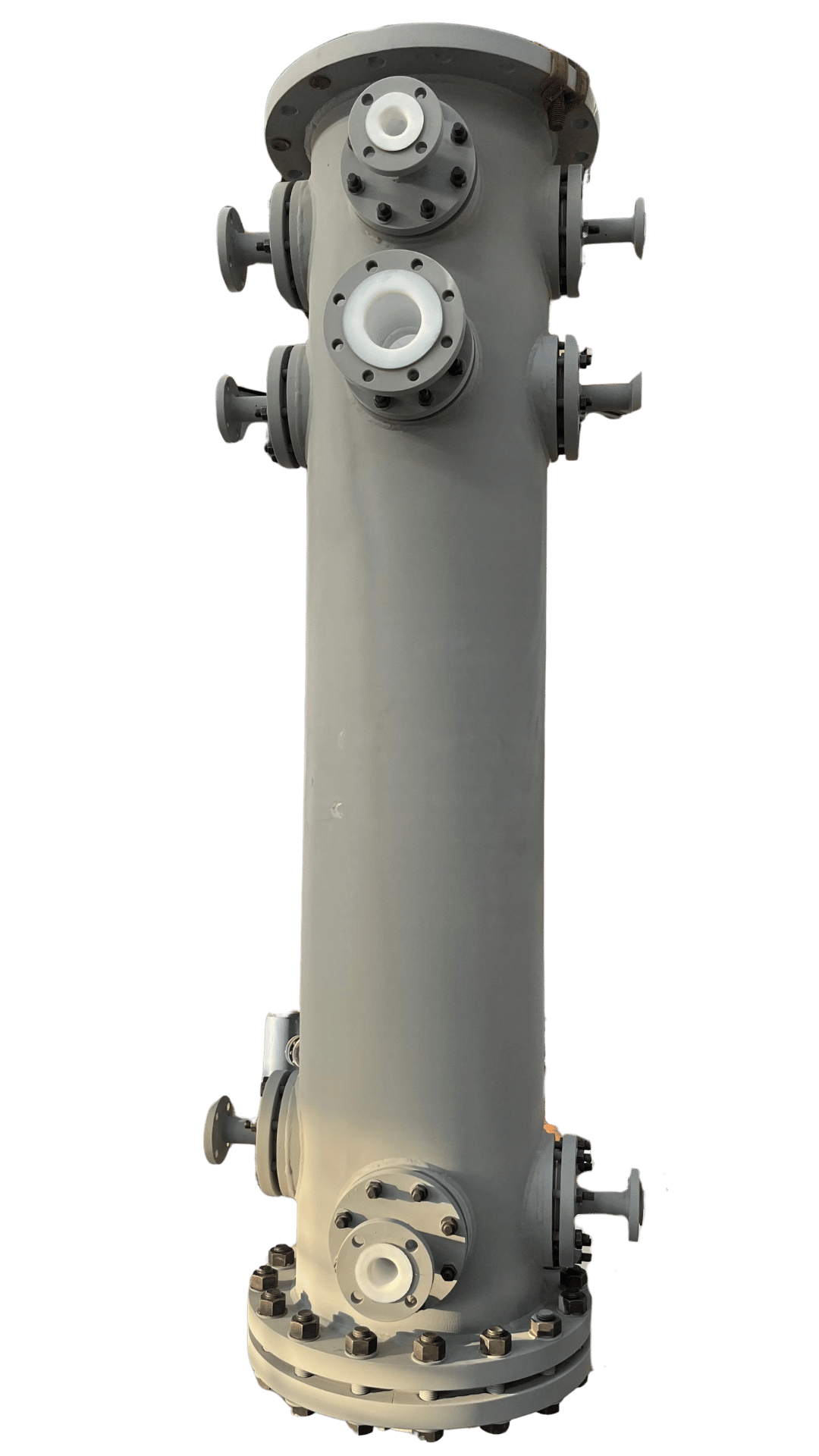

PTFE Lined Column
Asset Fluoro System is a trusted manufacturer of PTFE lined columns, delivering high‑performance solutions for corrosive and aggressive chemical applications. Our PTFE lined process columns are engineered for durability, safety, and long‑term operational reliability.
Key Features:
- Excellent chemical resistance
- High temperature tolerance
- Seamless PTFE lining
- Heavy-duty steel shell
Material Of Construction (MOC):
- Steel Housing Pipe: A106 Gr. B (SCH 40 For 025NB-250NB, SCH STD For 300NB-700NB),
Nozzle Pipe Sch 40 - Flanges: Material as Per IS 2062 GR B /ASTM A105 Dimensions As per ASME B16.5 #150. JIS or DIN Std Options available.
- Housing Standard: All Side Fix Flange (Loose flanges can provide on request)
- Lining: Virgin PTFE/Antistatic PTFE in compliance with ASTM F1545-15a. Standard PTFE Lining thickness as per mentioned in datasheet. Lining thickness can change as per customer requirement.
- Support/Lifting Lug : IS 2062 Gr. A profile cut plates as per requirement
