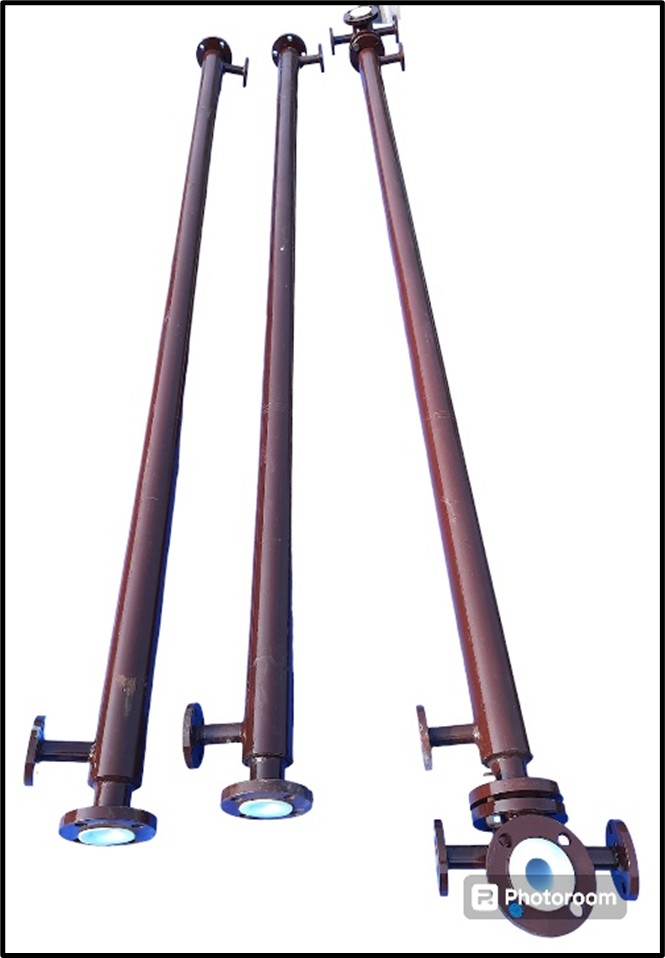

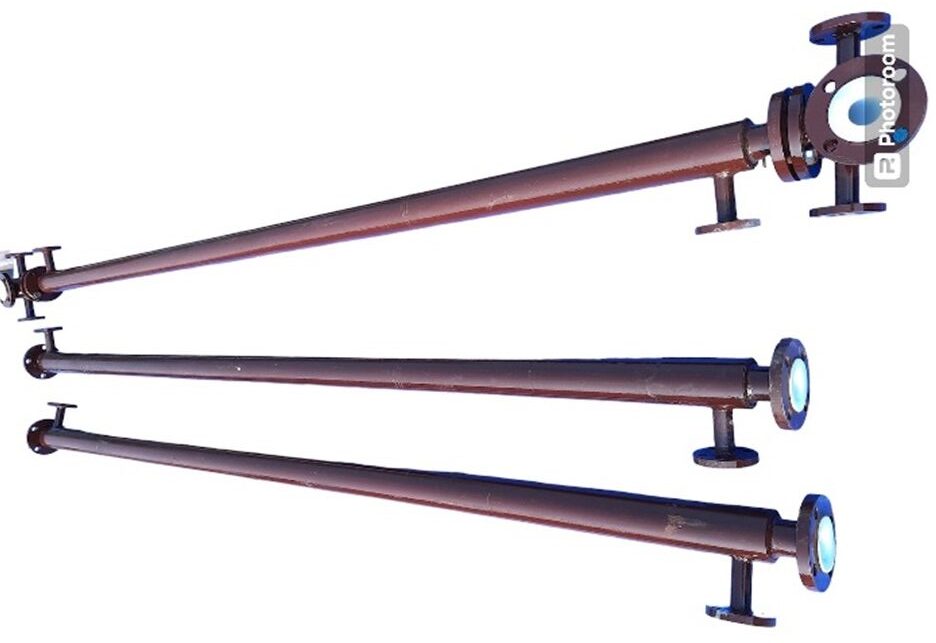

PTFE Lined Pipe Spool
Short Description:
PTFE Lined Pipe Spool are specialized piping components designed for transferring highly corrosive or temperature-sensitive fluids while maintaining uniform heat control. The inner PTFE lining provides exceptional chemical resistance, while the outer jacket allows heating or cooling media to circulate and regulate process temperature. These pipes ensure safe, efficient fluid handling in industries such as chemicals, pharmaceuticals, and petrochemicals.
Key Features:
- Precise temperature control
- Superior corrosion resistance
- High operational reliability
- Superior corrosion resistance
Specifications:
| Size (NB) (Internal) | Size (NB) (External) | Minimum Length (mm) | Max. Length (mm) | Lining Thickness (mm) |
|---|---|---|---|---|
| 15 | 40 | 200 | 6000 | 3.2 |
| 20 | 40 | 200 | 6000 | 3.2 |
| 25 | 40 | 200 | 6000 | 3.2 |
| 32 | 50 | 200 | 6000 | 3.2 |
| 40 | 65 | 200 | 6000 | 3.2 |
| 50 | 80 | 200 | 6000 | 3.2 |
| 65 | 100 | 200 | 6000 | 3.5 |
| 80 | 100 | 200 | 6000 | 3.5 |
| 100 | 150 | 200 | 6000 | 3.8 |
| 125 | 150 | 200 | 6000 | 5 |
| 150 | 200 | 200 | 6000 | 5 |
| 200 | 250 | 200 | 6000 | 6.5 |
| 250 | 300 | 200 | 6000 | 6 |
| 300 | 350 | 300 | 6000 | 6.5 |
| 350 | 400 | 300 | 3000 | 7 |
| 400 | 450 | 300 | 3000 | 8 |
| 450 | 500 | 300 | 3000 | 8 |
| 500 | 600 | 300 | 3000 | 8 |
| 600 | 700 | 300 | 3000 | 7.5 |

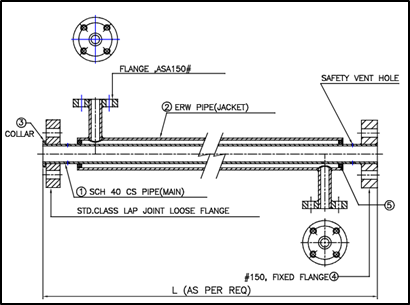

Material Of Construction (MOC):
- Pipe: A106 Gr. B (SCH 40 For 015NB-250NB, SCH STD For 300NB-500NB, SCH 20 For 600NB)
- Jacketed Pipe : ERW Pipe as per Class B
- Flanges: IS 2062 in accordance with ANSI B16.5 #150. JIS or DIN std. flanges also available as per customer requirement.
- Housing Standard: Both Side Fix Flange (One side fix and one side loose or Both side loose flanges can provide on request)
- Lining: Virgin PTFE/Antistatic PTFE in compliance with ASTM F1545-15a. Standard PTFE Lining thickness as per mentioned in datasheet. Lining thickness can change as per customer requirement.
- (PP, PVDF, HDPE) Lining material options available as per request in compliance with ASTM F1545-15a.
