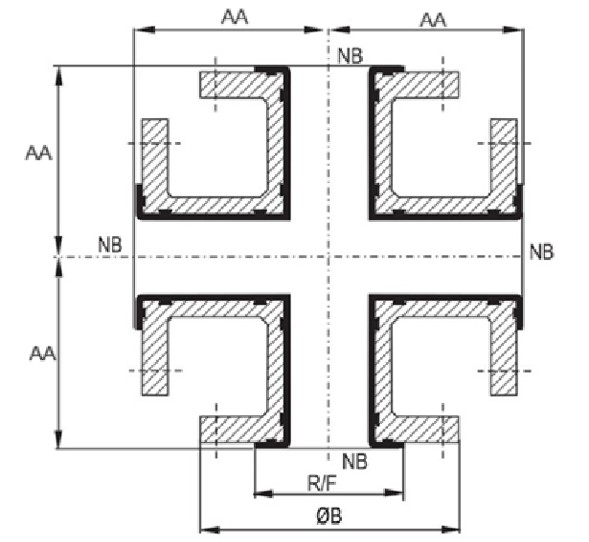

PTFE Lined Equal Cross
Short Description:
PTFE lined equal crosses are corrosion-resistant fittings designed to connect and distribute fluid flow evenly across four intersecting pipe lines. Built with a durable steel shell and a seamless PTFE lining, they ensure safe handling of highly corrosive, abrasive, or high-purity media. These crosses maintain smooth flow paths, prevent contamination, and provide long-term reliability in chemical, pharmaceutical, and industrial processing systems.
Key Features:
- Four-way flow distribution
- High chemical resistance
- Smooth PTFE interior
- Long service durability
Specifications:
| Size (NB) (Internal) | Size (NB) (External) | Minimum Length (mm) | Max. Length (mm) | Lining Thickness (mm) |
|---|---|---|---|---|
| 15 | 40 | 200 | 6000 | 3.2 |
| 20 | 40 | 200 | 6000 | 3.2 |
| 25 | 40 | 200 | 6000 | 3.2 |
| 32 | 50 | 200 | 6000 | 3.2 |
| 40 | 65 | 200 | 6000 | 3.2 |
| 50 | 80 | 200 | 6000 | 3.2 |
| 65 | 100 | 200 | 6000 | 3.5 |
| 80 | 100 | 200 | 6000 | 3.5 |
| 100 | 150 | 200 | 6000 | 3.8 |
| 125 | 150 | 200 | 6000 | 5 |
| 150 | 200 | 200 | 6000 | 5 |
| 200 | 250 | 200 | 6000 | 6.5 |
| 250 | 300 | 200 | 6000 | 6 |
| 300 | 350 | 300 | 6000 | 6.5 |
| 350 | 400 | 300 | 3000 | 7 |
| 400 | 450 | 300 | 3000 | 8 |
| 450 | 500 | 300 | 3000 | 8 |
| 500 | 600 | 300 | 3000 | 8 |
| 600 | 700 | 300 | 3000 | 7.5 |
Material Of Construction (MOC):
- Steel Housing Pipe: A106 Gr. B (SCH 40 For 025NB-250NB, SCH STD For 300NB-500NB, SCH 20 For 600NB)
- Flanges: IS 2062 in accordance with ANSI B16.5 #150. JIS or DIN std. flanges also available as per customer requirement.
- Housing Standard: All Side Fix Flange (Loose flanges can provide on request)
- One-Piece Cross for 025NB-200NB & Two-Piece Tee for 250NB-600NB.
- Lining: Virgin PTFE/Antistatic PTFE in compliance with ASTM F1545-15a. Standard PTFE Lining thickness as per mentioned in datasheet. Lining thickness can change as per customer requirement.
- (PP, PVDF, HDPE) Lining material options available as per request in compliance with ASTM F1545-15a
