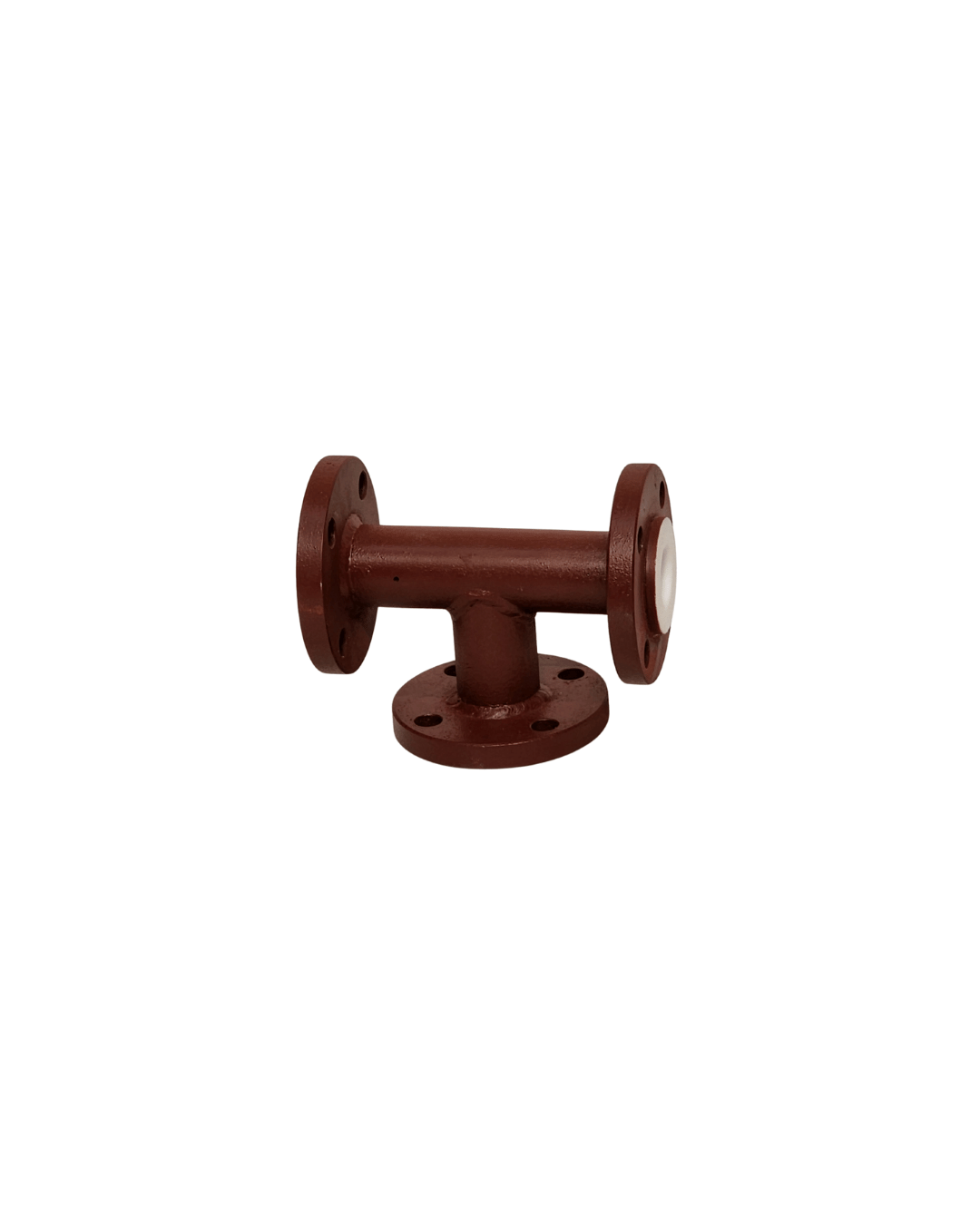

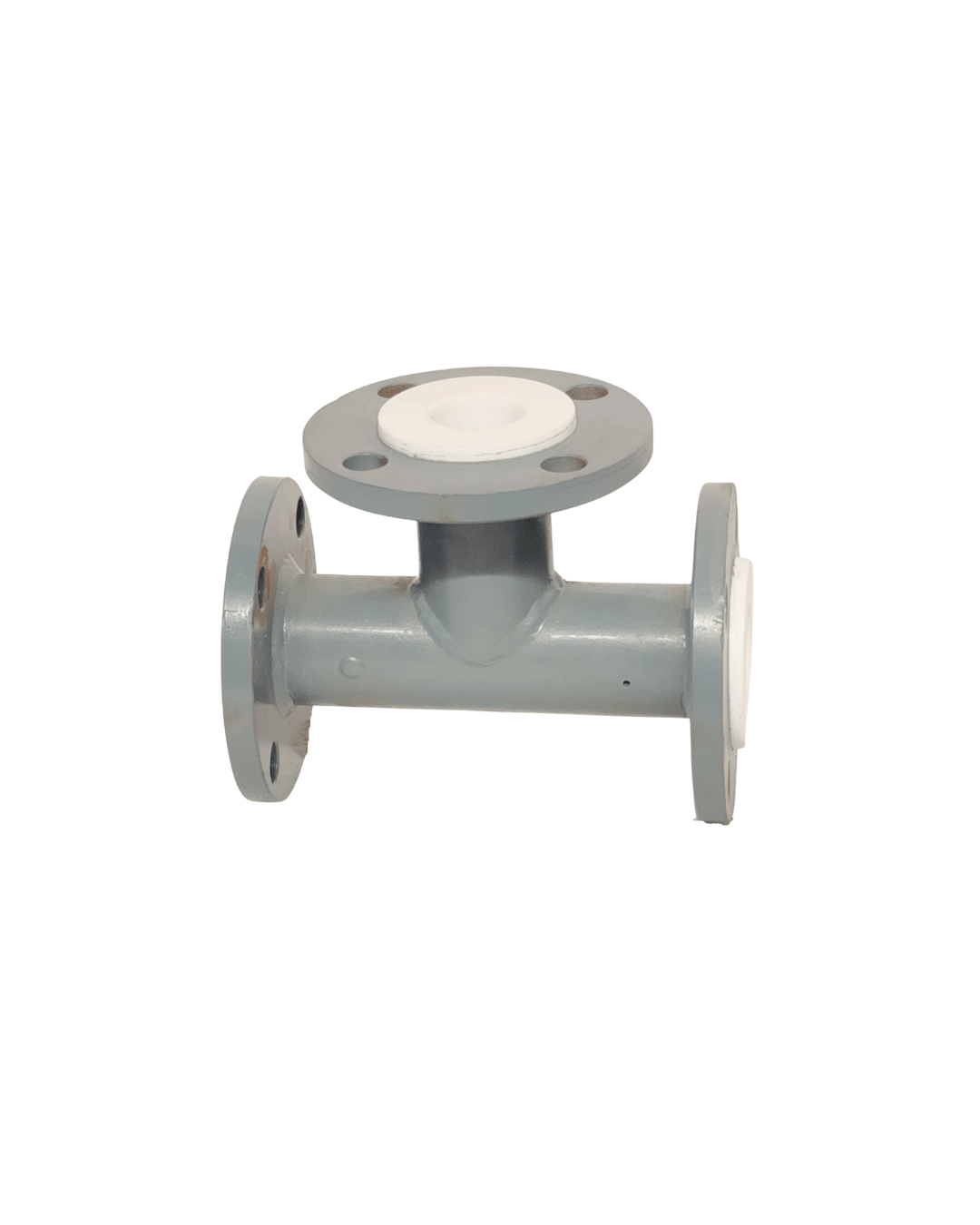

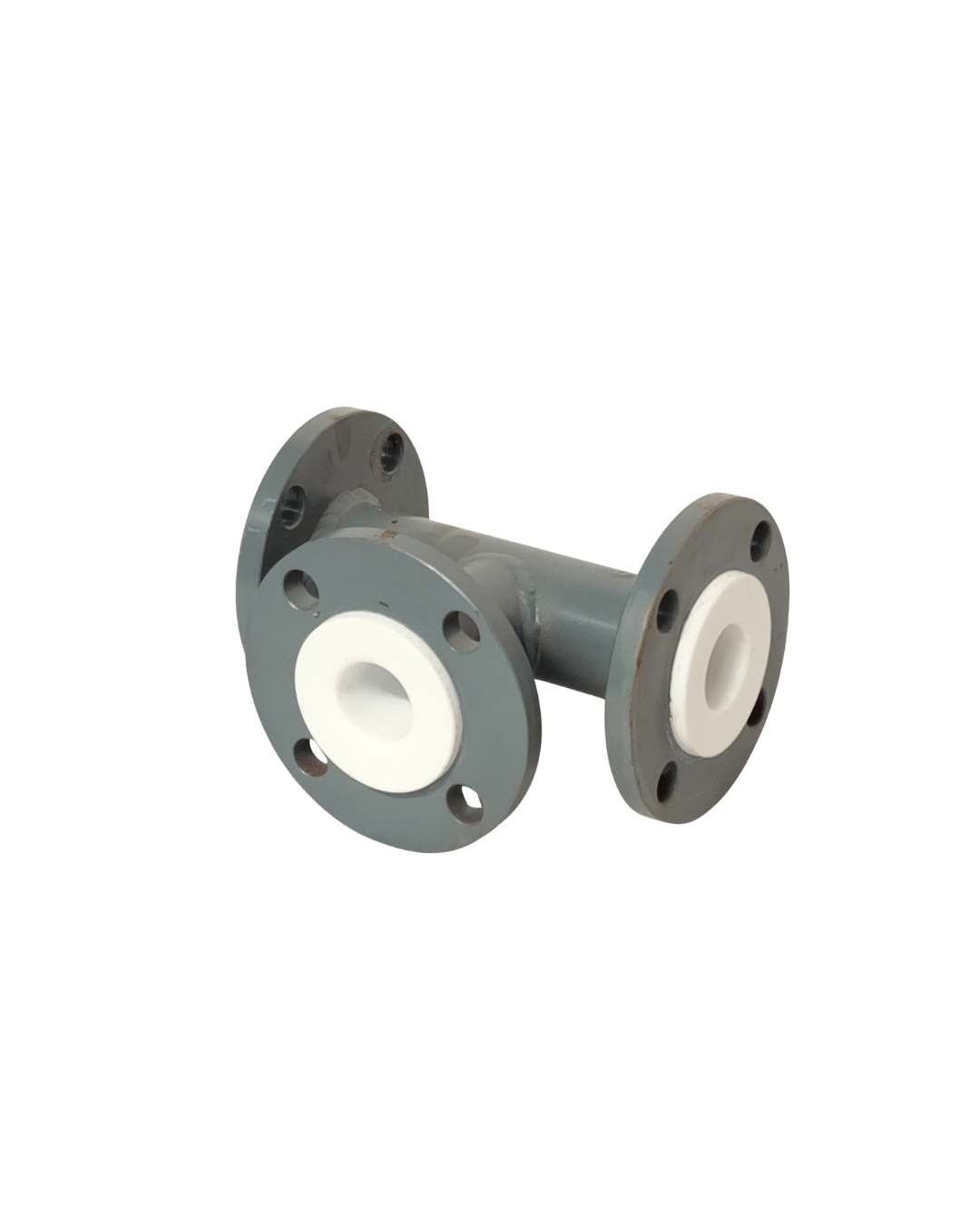

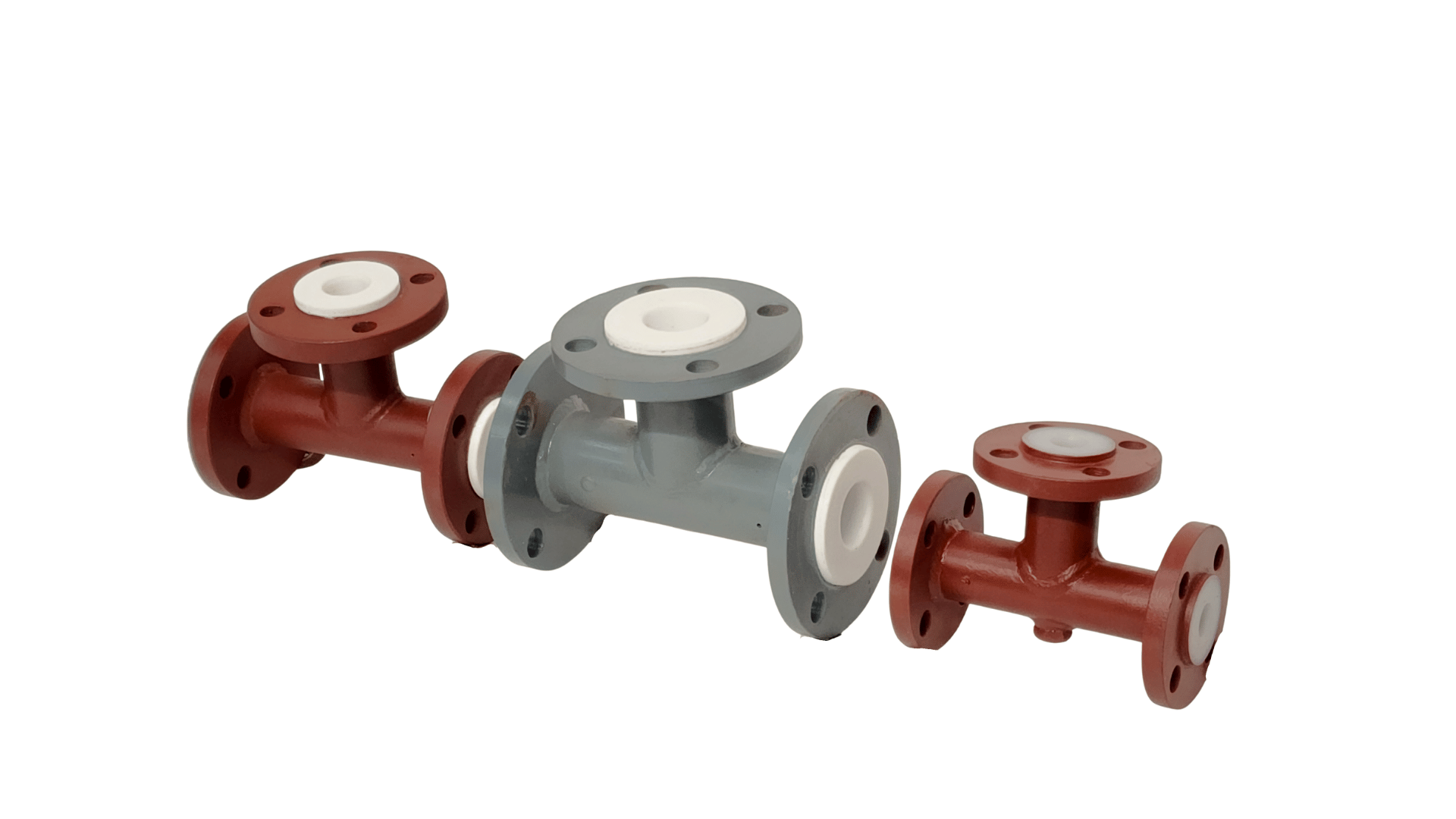

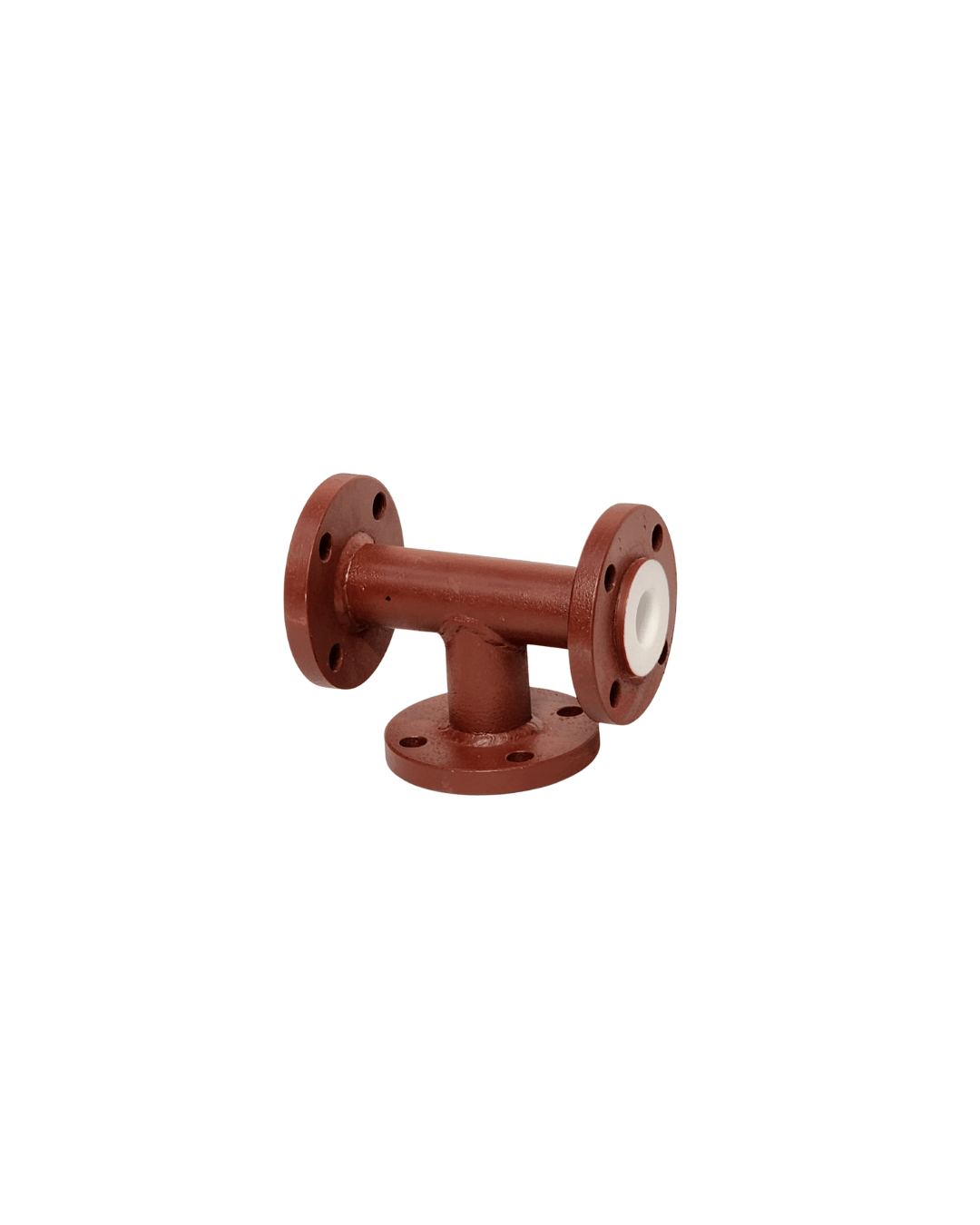

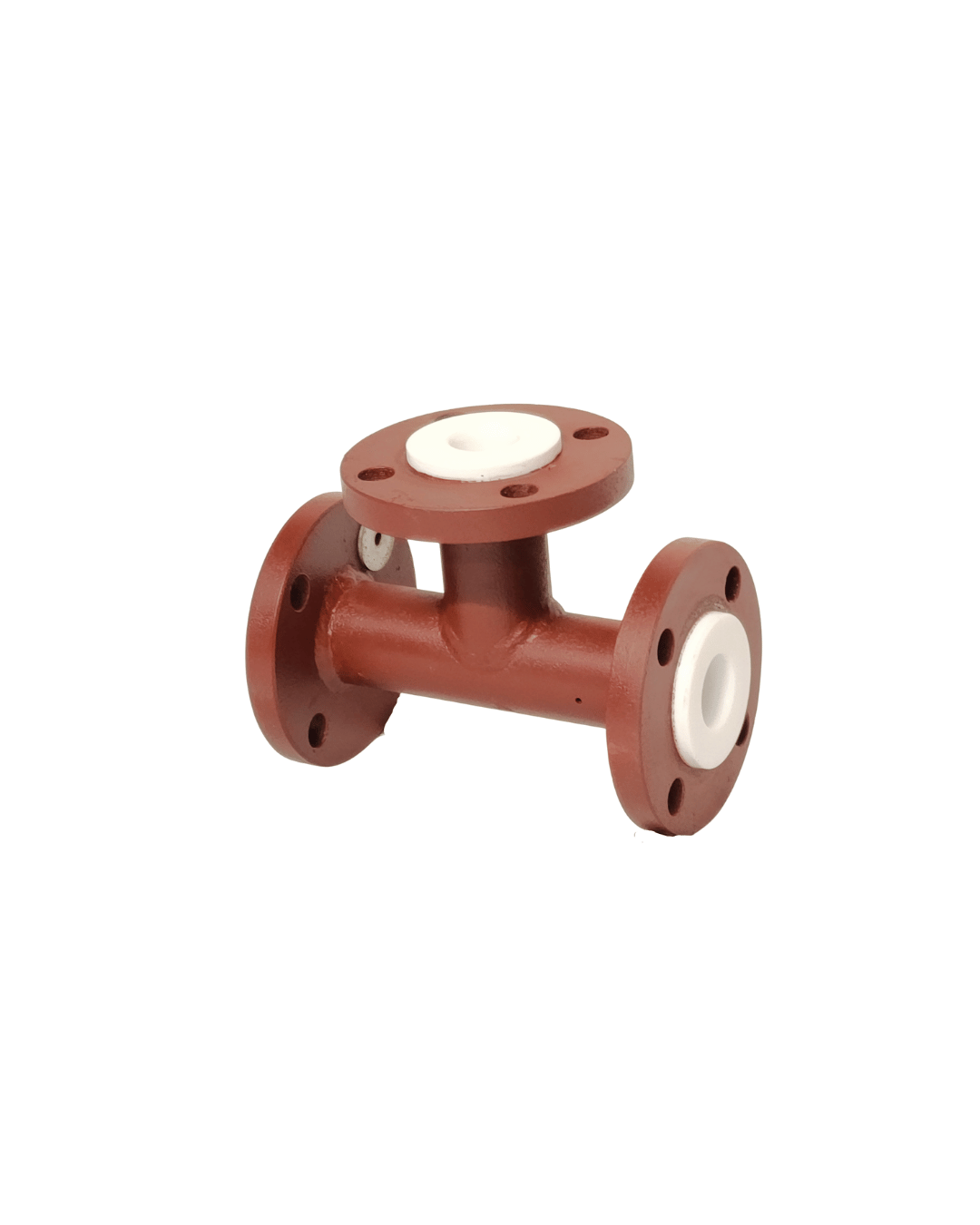

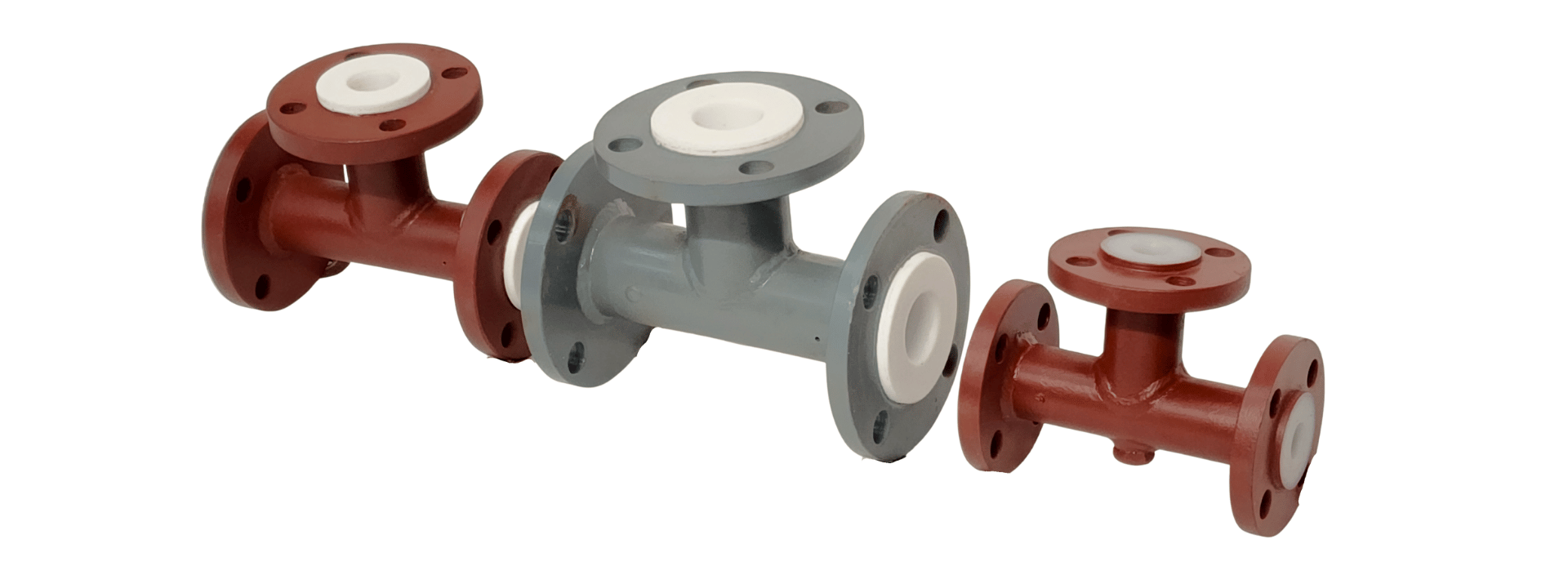

PTFE Lined Equal Tee
Short Description:
PTFE lined equal tees are corrosion-resistant pipe fittings designed to evenly split or combine fluid flow in demanding process systems. Built with a sturdy steel body and an inert PTFE lining, they ensure excellent chemical resistance and prevent contamination when handling aggressive or high-purity media. Ideal for chemical, pharmaceutical, and industrial applications, these tees provide reliable performance and long service life.
Key Features:
- Exceptional chemical resistance
- Uniform flow distribution
- Durable steel construction
- Contamination-free operation
Specifications:
| Size (NB) | Size (INCH) | AA | PTFE LINED TEE | LINED TEE (HDPE / PVDF / PP) | ||
|---|---|---|---|---|---|---|
| One Piece | Two Piece | Lining Thickness (MM) | One Piece | |||
| 25 | 1 | 89 | ♦ | 5 | ♦ | |
| 32 | 1.25 | 95 | ♦ | 5 | ♦ | |
| 40 | 1.5 | 102 | ♦ | 5 | ♦ | |
| 50 | 2 | 114 | ♦ | 5 | ♦ | |
| 65 | 2.5 | 127 | ♦ | 5 | ♦ | |
| 80 | 3 | 140 | ♦ | 5 | ♦ | |
| 100 | 4 | 165 | ♦ | 5 | ♦ | |
| 125 | 5 | 190 | ♦ | 5 | ♦ | |
| 150 | 6 | 203 | ♦ | 5 | ♦ | |
| 200 | 8 | 229 | ♦ | 5 | ♦ | |
| 250 | 10 | 279 | ♦ | 7 | ♦ | |
| 300 | 12 | 305 | ♦ | 7 | ♦ | |
| 350 | 14 | 364 | ♦ | 7 | ♦ | |
| 400 | 16 | 414 | ♦ | 8 | ♦ | |
| 450 | 18 | 427 | ♦ | 8 | ♦ | |
| 500 | 20 | 508 | ♦ | 8 | ♦ | |
| 600 | 24 | 618 | ♦ | 7.5 | ♦ | |
PTFE Lined Equal Tee
Material Of Construction (MOC):
- Steel Housing Pipe: A106 Gr. B (SCH 40 For 025NB-250NB, SCH STD For 300NB-500NB, SCH 20 For 600NB)
- Flanges: IS 2062 in accordance with ANSI B16.5 #150. JIS or DIN std. flanges also available as per customer requirement.
- Housing Standard: All Side Fix Flange (Loose flanges can provide on request)
- One-Piece Tee for 025NB-200NB & Two-Piece Tee for 250NB-600NB.
- Lining: Virgin PTFE/Antistatic PTFE in compliance with ASTM F1545-15a. Standard PTFE Lining thickness as per mentioned in datasheet. Lining thickness can change as per customer requirement.
- (PP, PVDF, HDPE) Lining material options available as per request in compliance with ASTM F1545-15a
