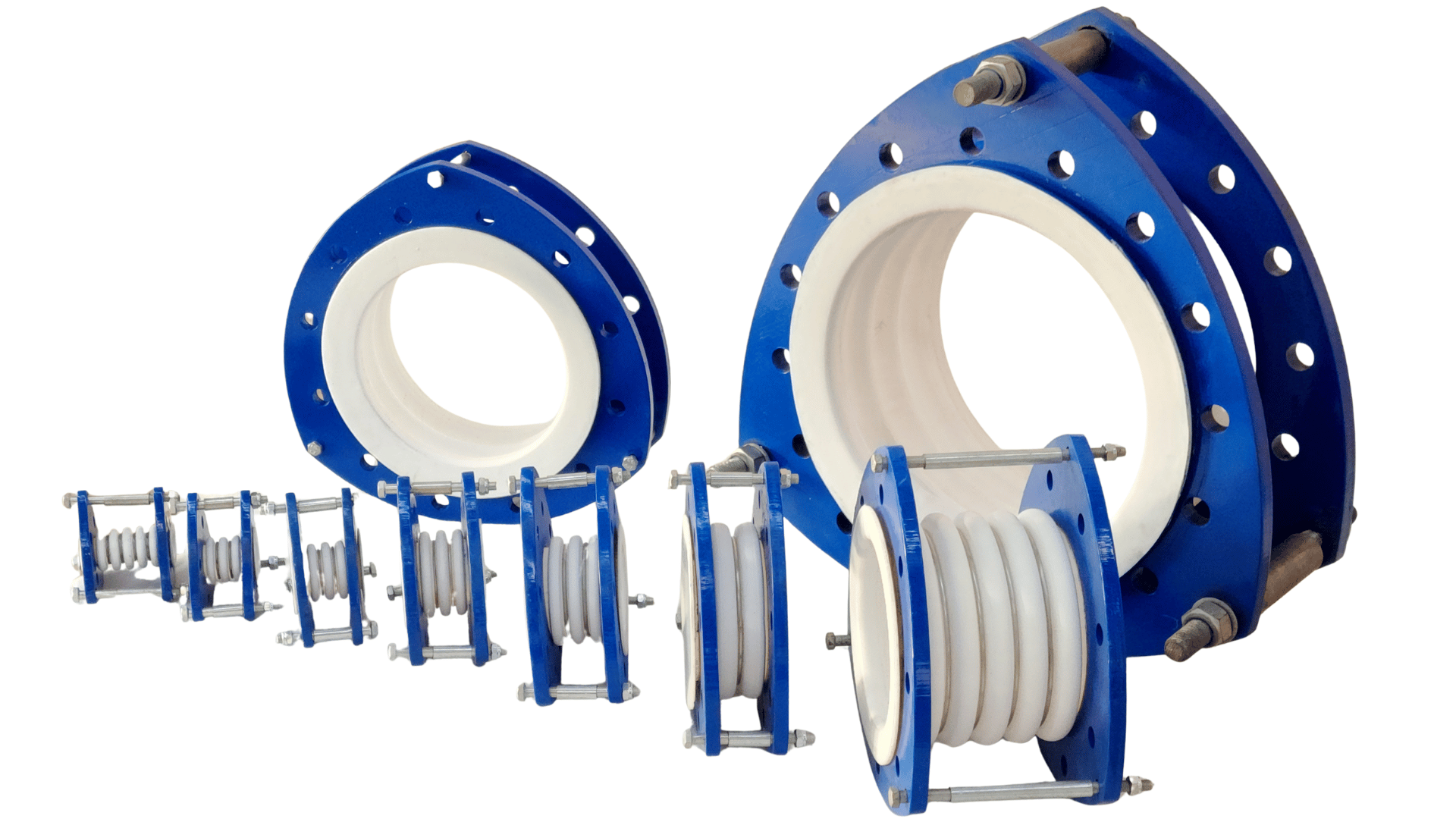

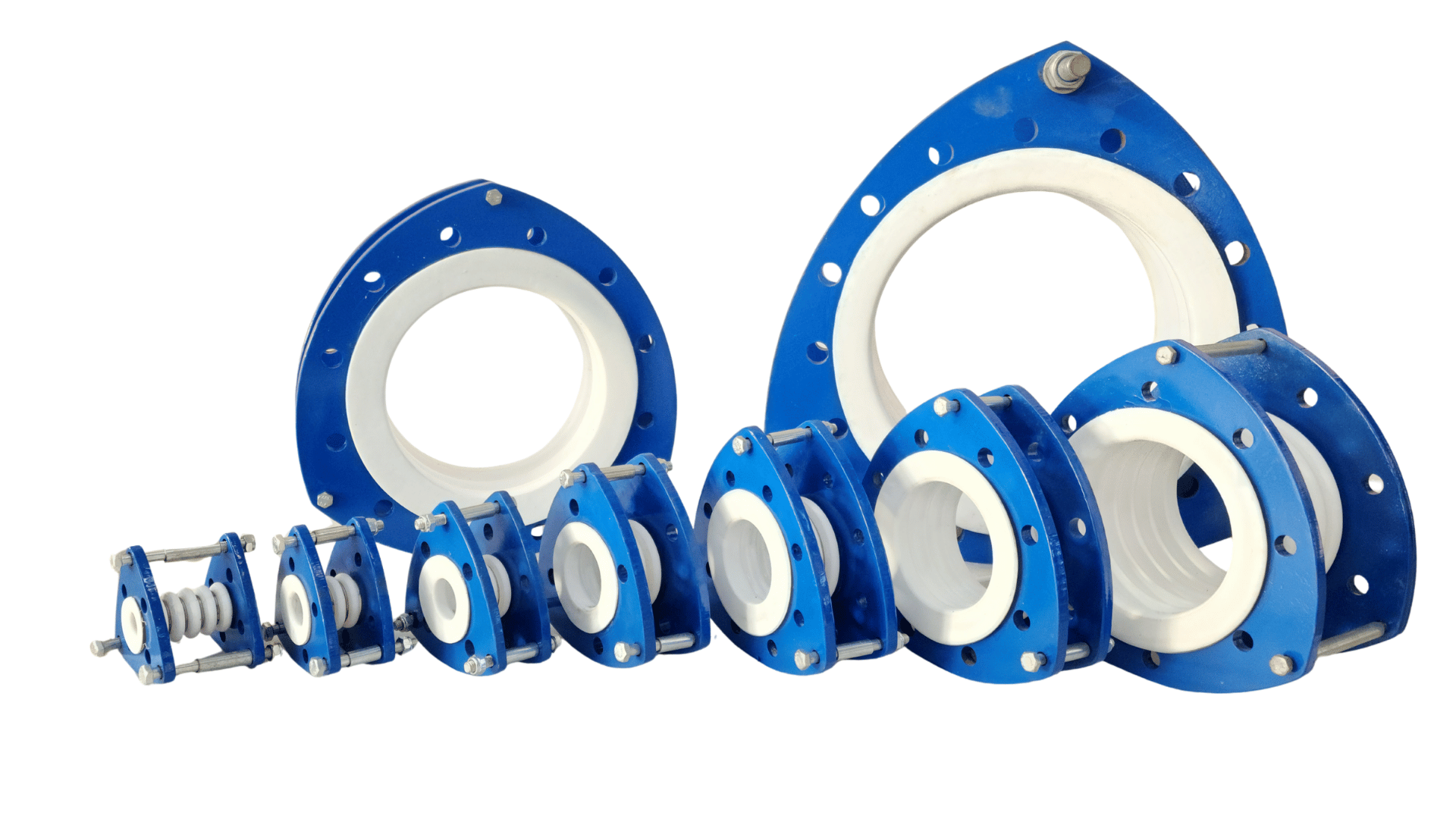

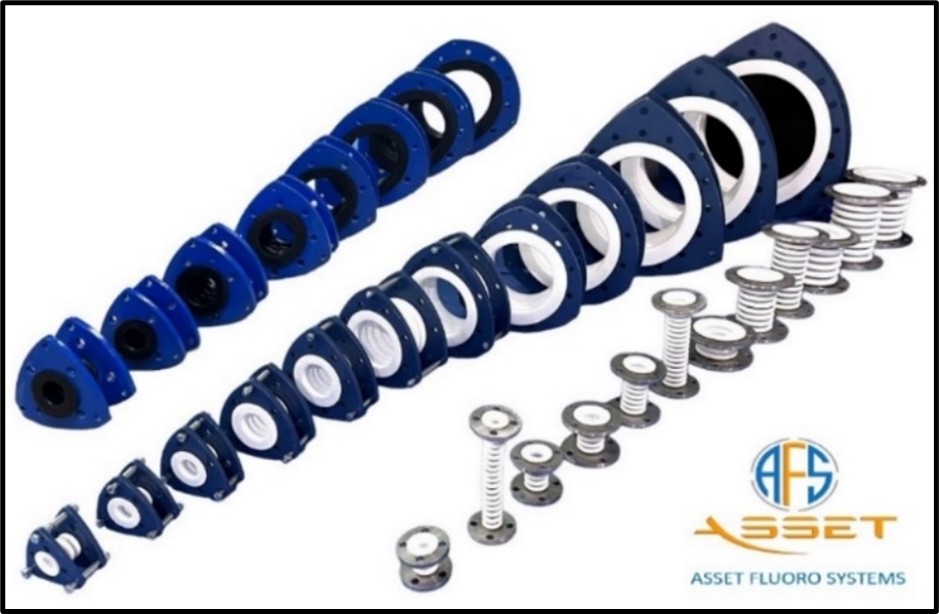

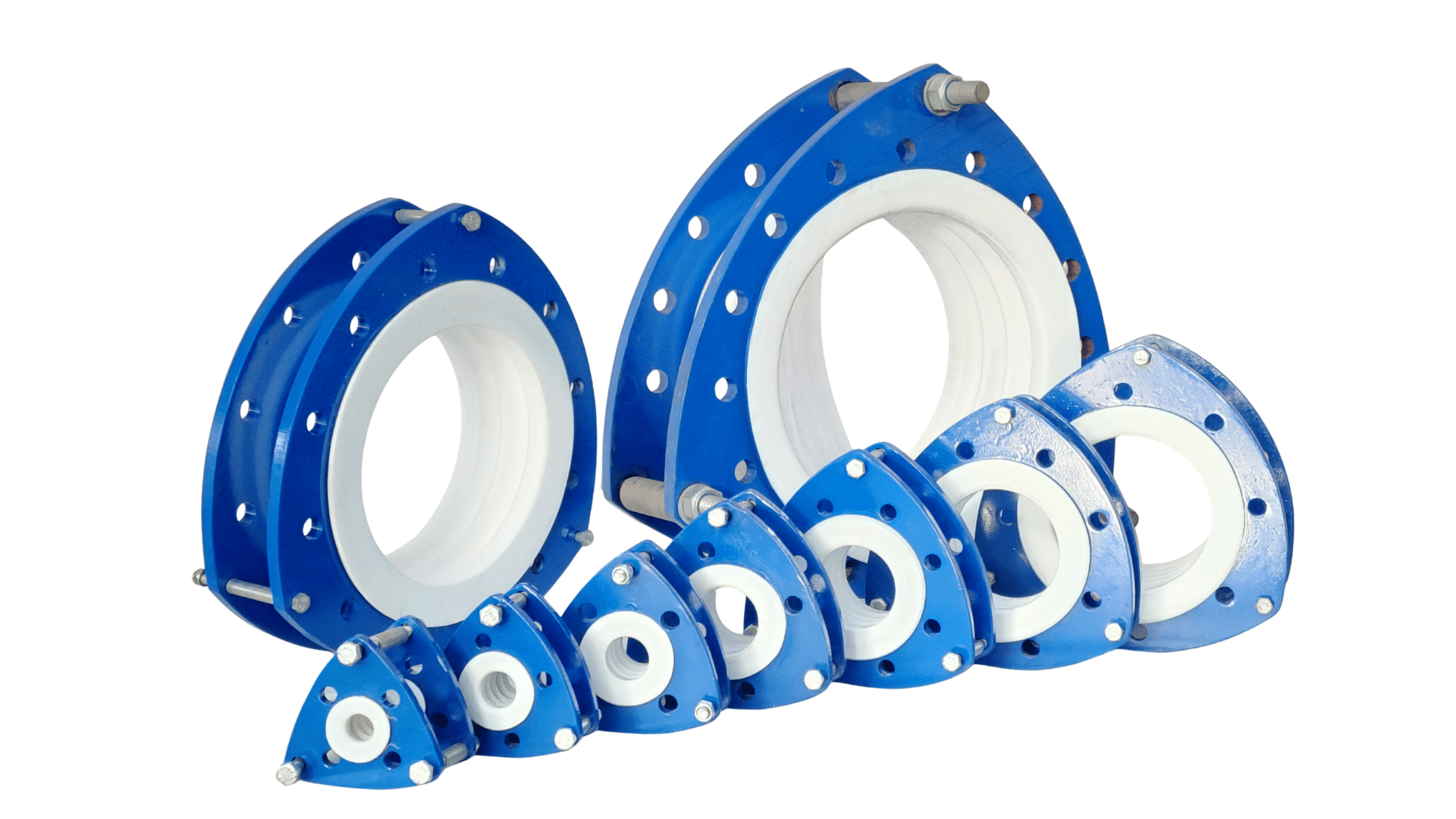

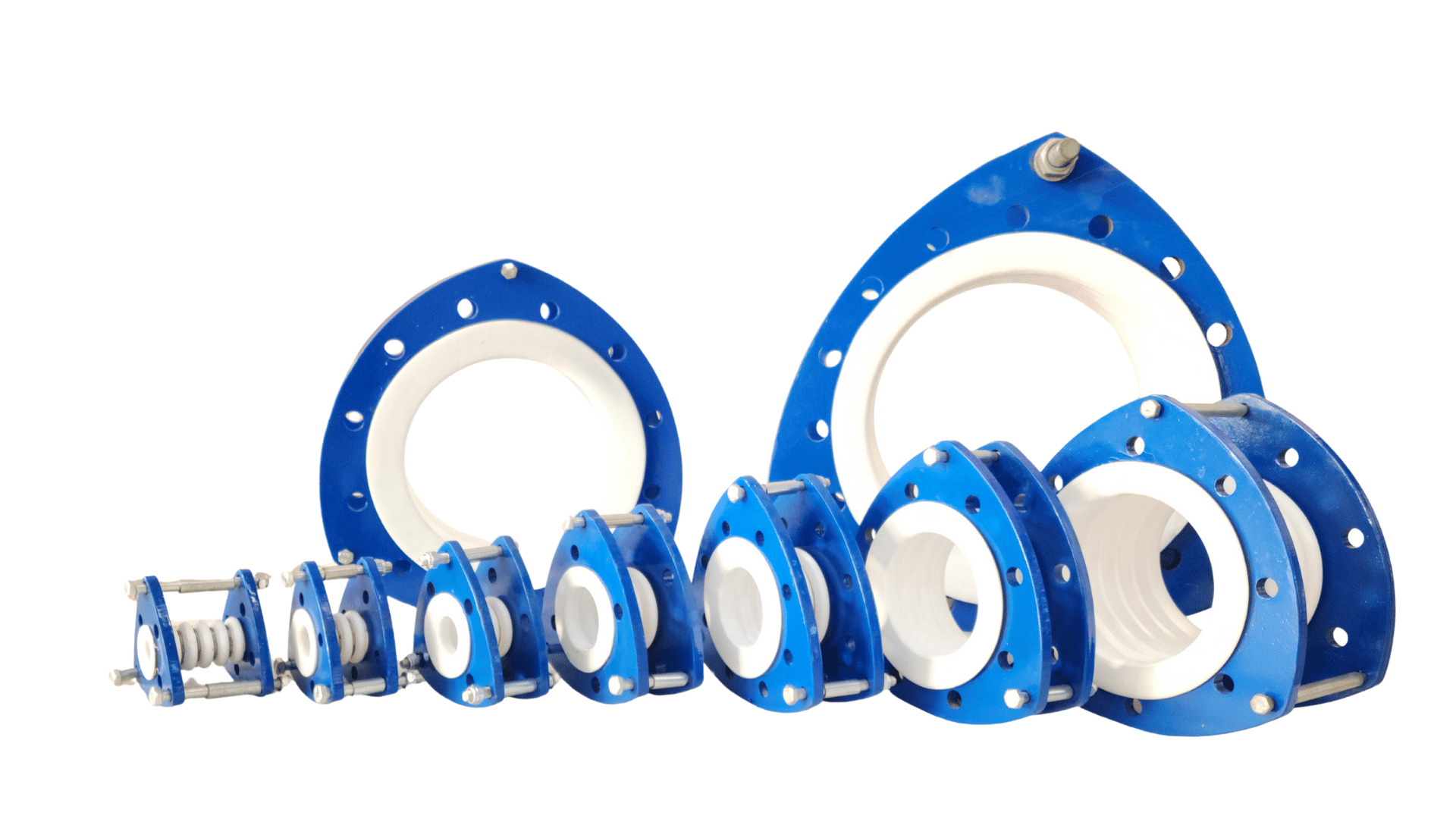

PTFE Lined Expansion Joint Bellows
PTFE lined expansion joint bellows are flexible connectors designed to absorb thermal expansion, vibration, and pipeline misalignment while safely handling corrosive or high-purity fluids. The inner PTFE lining provides exceptional chemical resistance, while the reinforced outer structure ensures strength and durability. These bellows protect equipment, reduce stress on piping systems, and improve operational reliability in chemical, pharmaceutical, and industrial applications.
Key Features:
- Excellent corrosion and chemical resistance
- Reliable backflow prevention
- Smooth, maintenance-free operation
Specifications:

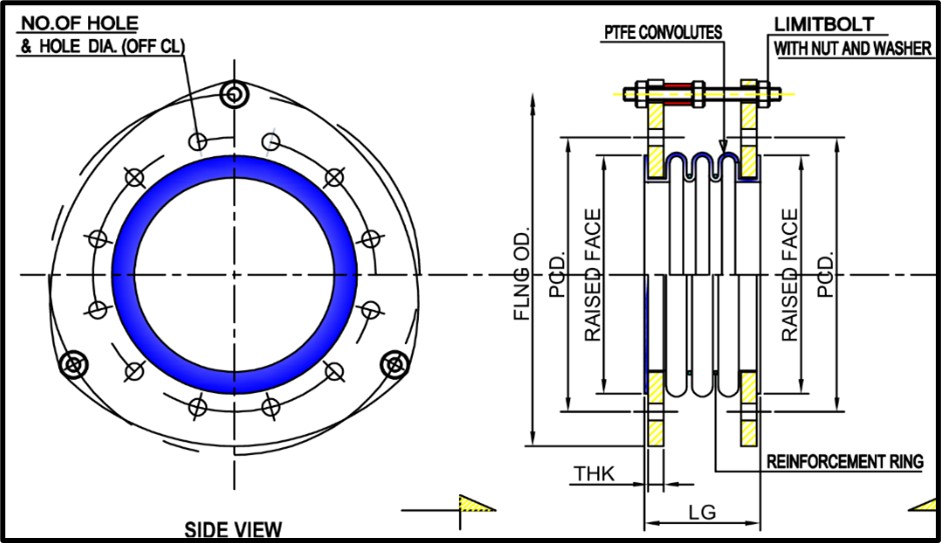

| Size (NB) | Size (INCH) | ± * Natural Length (L) | No Of Convolute | X± Max. Travel (Axial) (mm) | Max. Angular ± Y (Deg.) | Max. Misalignment (Lateral) ± | øD Flare Diameter (Tolerance as per F1545 15a) | PCD (mm) | ø Bore Diameter (mm) | T Flange Thk. (mm) | L No Of Holes | Bellow Length Options Available (mm) | Lining Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 025 | 1 | 75 | 3 | 8 | 15 | 6 | 50.8 | 79.2 | 23 | 12 | 4 | 50, 75, 100, 150, 200, 300, 500 | 3.50 |
| 040 | 1.5 | 75 | 3 | 8 | 15 | 6 | 73.2 | 98.6 | 35 | 12 | 4 | 50, 75, 100, 150, 200, 300, 350, 500 | 3.50 |
| 050 | 2 | 80 | 3 | 10 | 15 | 8 | 91.9 | 120.7 | 45 | 12 | 4 | 55, 80, 100, 150, 200, 300, 350, 500 | 3.50 |
| 065 | 2.5 | 85 | 3 | 10 | 15 | 8 | 106 | 139.7 | 57 | 12 | 4 | 85, 150, 200 | 3.50 |
| 080 | 3 | 100 | 3 | 13 | 15 | 12 | 127 | 152.4 | 72 | 16 | 4 | 75, 100, 150, 200, 300, 350, 500 | 4.00 |
| 100 | 4 | 100 | 3 | 13 | 15 | 12 | 157.2 | 190.5 | 95 | 16 | 8 | 75, 100, 150, 200, 400, 500 | 4.00 |
| 125 | 5 | 120 | 3 | 15 | 15 | 12 | 185 | 215.9 | 115 | 16 | 8 | 100, 120, 150, 300 | 5.00 |
| 150 | 6 | 135 | 3 | 15 | 15 | 14 | 215.9 | 241.3 | 140 | 16 | 8 | 100, 135, 150, 200, 300, 500 | 5.50 |
| 200 | 8 | 150 | 3 | 15 | 15 | 14 | 269.7 | 298.5 | 188 | 18 | 8 | 100, 150, 200, 250, 300 | 6.50 |
| 250 | 10 | 175 | 3 | 15 | 15 | 12 | 324 | 362 | 238 | 18 | 12 | 125, 175 | 6.20 |
| 300 | 12 | 175 | 3 | 16 | 15 | 15 | 381 | 431.2 | 288 | 18 | 12 | 125, 175 | 6.50 |
| 350 | 14 | 190 | 3 | 18 | 15 | 17 | 412 | 476.3 | 320 | 25 | 12 | 190 | 7.00 |
| 400 | 16 | 240 | 3 | 18 | 15 | 19 | 470 | 539.3 | 375 | 30 | 16 | 170, 240 | 7.00 |
| 450 | 18 | 260 | 3 | 20 | 15 | 19 | 533.4 | 577.9 | 400 | 30 | 16 | 260 | 7.00 |
| 500 | 20 | 275 | 3 | 20 | 15 | 20 | 584.2 | 635 | 475 | 30 | 20 | 275 | 7.00 |
| 600 | 24 | 290 | 3 | 25 | 15 | 20 | 692.2 | 749.3 | 575 | 30 | 20 | 290 | 7.00 |
Material Of Construction (MOC):
- Flanges: Plate Flanges IS 2062 Gr. A, In Accordance with B16.5 #150 except flange thickness. Flange Thickness as mentioned in charts.
- Stainless Steel SS304/SS316 Flanges can be available on request.
- Flange Design: AFS Bellows Flange Design Triangular Flanges, Flanges With Lug, Round Flanges available as per requirement.
- Reinforcement Ring: SS316L Wire Rings
- Lining: Virgin PTFE/Antistatic PTFE in compliance with ASTM F1545-15a. Standard PTFE Lining thickness as per mentioned in chart.
- Limit Rods : Minimum 3 Limit Rods of Zinc Plated with Lock Nuts
