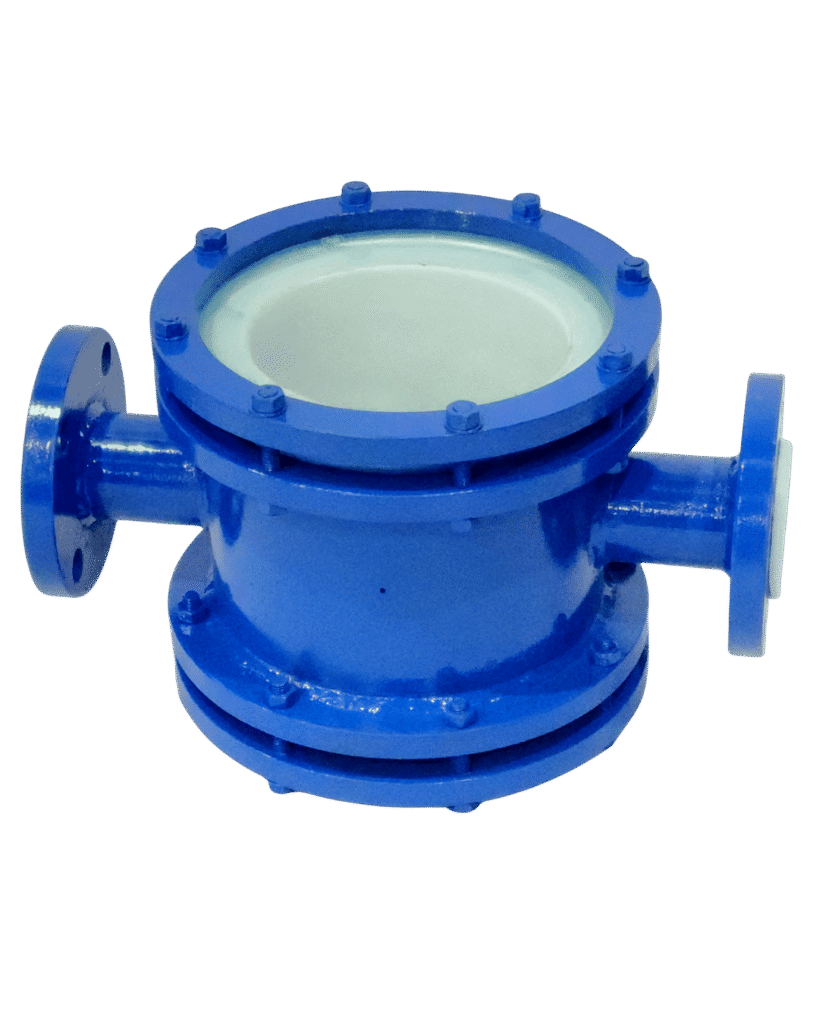

Lined Double Window Full View Glass
PTFE lined dip pipes are designed for safe transfer, injection, or withdrawal of highly corrosive fluids within tanks and vessels. The robust outer structure provides mechanical strength, while the seamless PTFE lining ensures superior chemical resistance and contamination-free operation. These dip pipes are widely used in chemical and pharmaceutical processes where durability, reliability, and long service life are essential.
Key Features:
- Long service life
- Reliable fluid transfer
- Smooth PTFE lining
- Corrosion-resistant design
Quality & Testing:
- All PTFE liners are subjected to stringent physical testing, including dimensional inspection, density, tensile strength, and elongation tests.
- PTFE Liners additionally undergo conductivity testing Surface Resistivity & Volumetric Resistivity to verify controlled electrical resistance and compliance with application requirements.
Specifications:

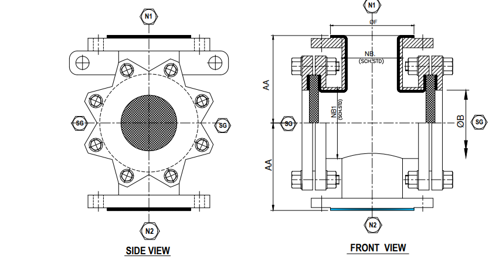

| Size (NB) | Glass Size | Center Height (AA) mm |
|---|---|---|
| 25 | 40 | 80 |
| 40 | 50 | 100 |
| 50 | 65 | 115 |
| 65 | 86 | 145 |
| 80 | 112 | 155 |
| 100 | 135 | 175 |
Material Of Construction (MOC):
- Body : Fabricated with A106 Gr. B SCH40 Pipe
- Flanges: Material as Per IS 2062 GR B /ASTM A105 Dimensions As per ASME B16.5 #150. JIS or DIN Std Options available
- Lining: Virgin PTFE in compliance with ASTM F1545-15a. Standard PTFE Lining thickness as per mentioned in datasheet.
- Glass : Toughned Glass BS3462 Diamond Make
Fastners : CS Plate
