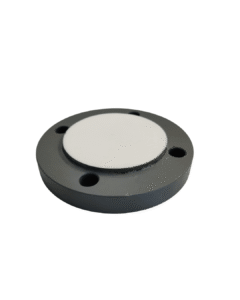

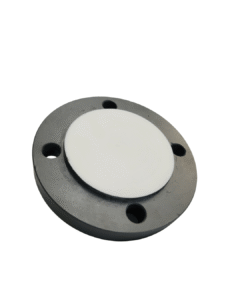

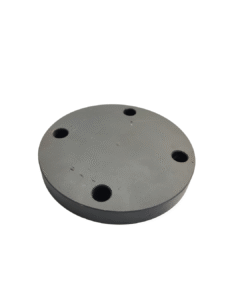

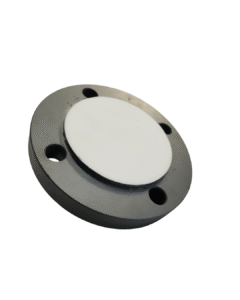

PTFE Lined Spectacle Blind Flange
PTFE lined spectacle blind flanges are dual-purpose isolation components designed to either block or allow flow in corrosive piping systems. Featuring a solid steel body with an inert PTFE lining, they provide excellent chemical resistance and leak-proof sealing. The rotating design enables quick line isolation for maintenance or inspection, making them ideal for chemical, pharmaceutical, and process industry applications.
Key Features:
- Dual isolation design
- High chemical resistance
- Leak-proof PTFE lining
- Easy line switching
Specifications:

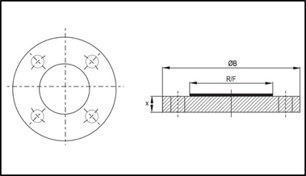

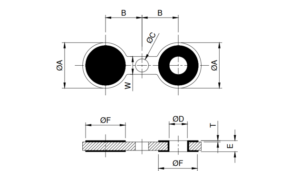

| Size (NB) | ø A | B | w | ø C | E |
|---|---|---|---|---|---|
| 25 | 64 | 40 | 38 | 15.9 | 20 |
| 40 | 83 | 50 | 38 | 15.9 | 23 |
| 50 | 102 | 60 | 51 | 19.1 | 25 |
| 80 | 133 | 75 | 64 | 19.1 | 28 |
| 100 | 172 | 95 | 64 | 19.1 | 30 |
| 150 | 219 | 120 | 76 | 22.2 | 35.4 |
| 200 | 276 | 150 | 76 | 22.2 | 38.4 |
| 250 | 337 | 180 | 102 | 25.4 | 39.9 |
| 300 | 406 | 215 | 102 | 25.4 | 41.7 |
| 350 | 448 | 237.5 | 108 | 28.6 | 44.8 |
| 400 | 511 | 270 | 108 | 28.6 | 46.6 |
| 450 | 546 | 290 | 114 | 31.8 | 49.6 |
| 500 | 603 | 317.5 | 121 | 31.8 | 52.6 |
| 600 | 714 | 375 | 140 | 34.9 | 57.5 |
Material Of Construction (MOC):
- Flanges: Material as Per IS 2062 GR B /ASTM A105 Dimensions As per ASME B16.5 #150. JIS or DIN Std Options available
- Lining: Virgin PTFE/Antistatic PTFE in compliance with ASTM F1545- 15a.
