PTFE Lined UnEqual Tee
PTFE lined unequal tees are specialized fittings designed to divert or combine fluid flow between pipes of different diameters while ensuring maximum corrosion resistance. With a solid steel exterior and a seamless PTFE lining, they safely handle aggressive, abrasive, or high-purity media without contamination. These tees are ideal for chemical, pharmaceutical, and industrial fluid-handling systems requiring reliability and long-term durability.
Key Features:
- Handles varied pipe sizes
- Excellent chemical resistance
- Smooth, non-stick interior
- Robust steel construction
Specifications:

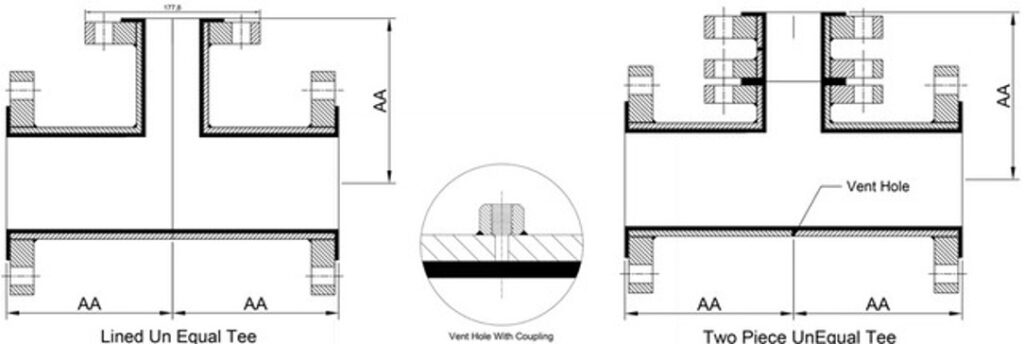

| Size (NB) | Size (NB) | AA | LINED UNEQUAL TEE PTFE | LINED UNEQUAL TEE (HDPE / PVDF / PP) | ||
|---|---|---|---|---|---|---|
| ONE PIECE | TWO PIECE | Lining Thickness (MM) | ONE PIECE | |||
| 040 | 025 | 102 | ♦ | 5 | ♦ | |
| 050 | 025 | 114 | ♦ | 5 | ♦ | |
| 040 | 114 | ♦ | 5 | ♦ | ||
| 080 | 025 | 140 | ♦ | 5 | ♦ | |
| 040 | 140 | ♦ | 5 | ♦ | ||
| 050 | 140 | ♦ | 5 | ♦ | ||
| 100 | 025 | 165 | ♦ | 5 | ♦ | |
| 040 | 165 | ♦ | 5 | ♦ | ||
| 050 | 165 | ♦ | 5 | ♦ | ||
| 080 | 165 | ♦ | 5 | ♦ | ||
| 150 | 025 | 203 | ♦ | 5 | ♦ | |
| 040 | 203 | ♦ | 5 | ♦ | ||
| 050 | 203 | ♦ | 5 | ♦ | ||
| 080 | 203 | ♦ | 5 | ♦ | ||
| 100 | 203 | ♦ | 5 | ♦ | ||
| 200 | 025 | 229 | ♦ | 5 | ♦ | |
| 040 | 229 | ♦ | 5 | ♦ | ||
| 050 | 229 | ♦ | 5 | ♦ | ||
| 080 | 229 | ♦ | 5 | ♦ | ||
| 100 | 229 | ♦ | 5 | ♦ | ||
| 150 | 229 | ♦ | 5 | ♦ | ||
| 250 | 100 | 279 | ♦ | 7 | ♦ | |
| 150 | 279 | ♦ | 7 | ♦ | ||
| 200 | 279 | ♦ | 7 | ♦ | ||
| 300 | 150 | 305 | ♦ | 7 | ♦ | |
| 200 | 305 | ♦ | 7 | ♦ | ||
| 250 | 305 | ♦ | 7 | ♦ | ||
| 350 | 100 | 356 | ♦ | 7 | ♦ | |
| 150 | 356 | ♦ | 7 | ♦ | ||
| 200 | 356 | ♦ | 7 | ♦ | ||
| 250 | 356 | ♦ | 7 | ♦ | ||
| 300 | 356 | ♦ | 7 | ♦ | ||
| 400 | 100 | 381 | ♦ | 7 | ♦ | |
| 150 | 381 | ♦ | 7 | ♦ | ||
| 200 | 381 | ♦ | 7 | ♦ | ||
| 250 | 381 | ♦ | 7 | ♦ | ||
| 300 | 381 | ♦ | 7 | ♦ | ||
| 350 | 381 | ♦ | 7 | ♦ | ||
| 450 | 100 | 419 | ♦ | 7 | ♦ | |
| 150 | 419 | ♦ | 7 | ♦ | ||
| 200 | 419 | ♦ | 7 | ♦ | ||
| 250 | 419 | ♦ | 7 | ♦ | ||
| 300 | 419 | ♦ | 7 | ♦ | ||
| 350 | 419 | ♦ | 7 | ♦ | ||
| 400 | 419 | ♦ | 7 | ♦ | ||
| 500 | 100 | 457 | ♦ | 7 | ♦ | |
| 150 | 457 | ♦ | 7 | ♦ | ||
| 200 | 457 | ♦ | 7 | ♦ | ||
| 250 | 457 | ♦ | 7 | ♦ | ||
| 300 | 457 | ♦ | 7 | ♦ | ||
| 350 | 457 | ♦ | 7 | ♦ | ||
| 400 | 457 | ♦ | 7 | ♦ | ||
| 450 | 457 | ♦ | 7 | ♦ | ||
| 600 | 100 | 559 | ♦ | 7 | ♦ | |
| 150 | 559 | ♦ | 7 | ♦ | ||
| 200 | 559 | ♦ | 7 | ♦ | ||
| 250 | 559 | ♦ | 7 | ♦ | ||
| 300 | 559 | ♦ | 7 | ♦ | ||
| 350 | 559 | ♦ | 7 | ♦ | ||
| 400 | 559 | ♦ | 7 | ♦ | ||
| 450 | 559 | ♦ | 7 | ♦ | ||
| 500 | 559 | ♦ | 7 | ♦ | ||
Material Of Construction (MOC):
- Steel Housing Pipe: A106 Gr. B (SCH 40 For 025NB-250NB, SCH STD For 300NB-700NB)
- Flanges: Material as Per IS 2062 GR B /ASTM A105 Dimensions As per ASME B16.5 #150. JIS or DIN Std Options available
- Housing Standard: All Side Fix Flange One-Piece Tee for 025NB-250NB & Two-Piece Tee for 300NB-700NB.
- Lining: PTFE Lined UnEqual Tee/Antistatic PTFE Lined UnEqual Tee in compliance with ASTM F1545-15a.
- PP Lined UnEqual Tee, PVDF Lined UnEqual Tee , HDPE Lined UnEqual Tee) Lining material options available as per request in compliance with ASTM F1545-15a
